Application DataCombustion Ion Chromatography (C-IC)

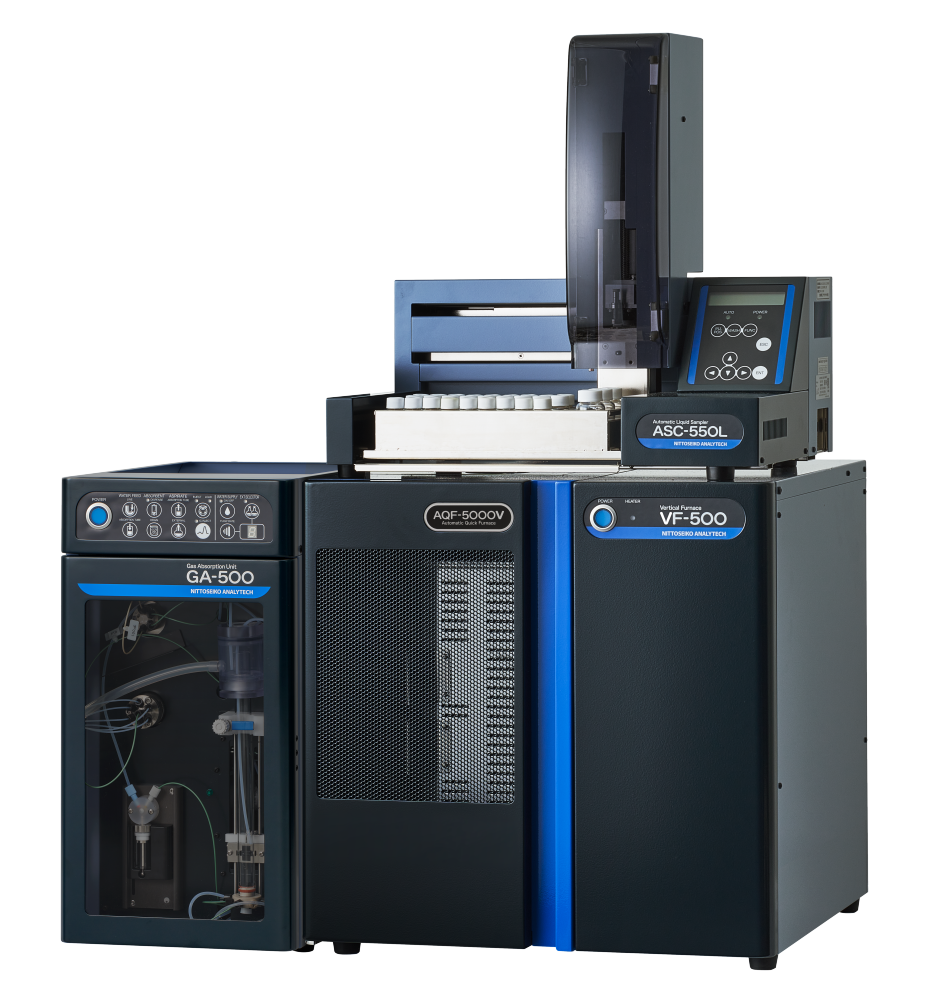

AQF-5000V Automatic Quick Furnace for Combustion Ion Chromatography
AQF-5000V is ideal for the pretreatment of liquid samples for sulfur and halogen analysis.
It enables safe and high-volume combustion of liquid samples
First
No boat program required, and fully automatic sample injection of liquid sample.
Accurate
Much lower system blank, since direct sample injection to the heater furnace.
High sensitivity
Detects concentrations below 1 ppm by processing large volumes of liquid samples through sequential combustion.
Safe combustion for everyone — no program needed, just inject liquid samples slowly.
| Sample | Liquid (Gas samples require a gas injector) |
|---|---|
| Sample Amount | 5-100µL |
| Sample pyrolysis |
High purity quartz tube (ceramic option) |
| Electric furnace | Max. 1,100℃, Openable electric furnace, 2 heating zones (Temperature individually controlled) |
| Gas | Argon (purity 99.98% or higher, 0.3±0.1MPa) Oxygen (purity 99.98% or higher, 0.3±0.1MPa) |
| Power supply |
AC100-240VAC, 50/60Hz |
| Dimensions & Weight |
VF-500：approx. 500（W）×300（D）×500（H） mm, approx. 35 kg |

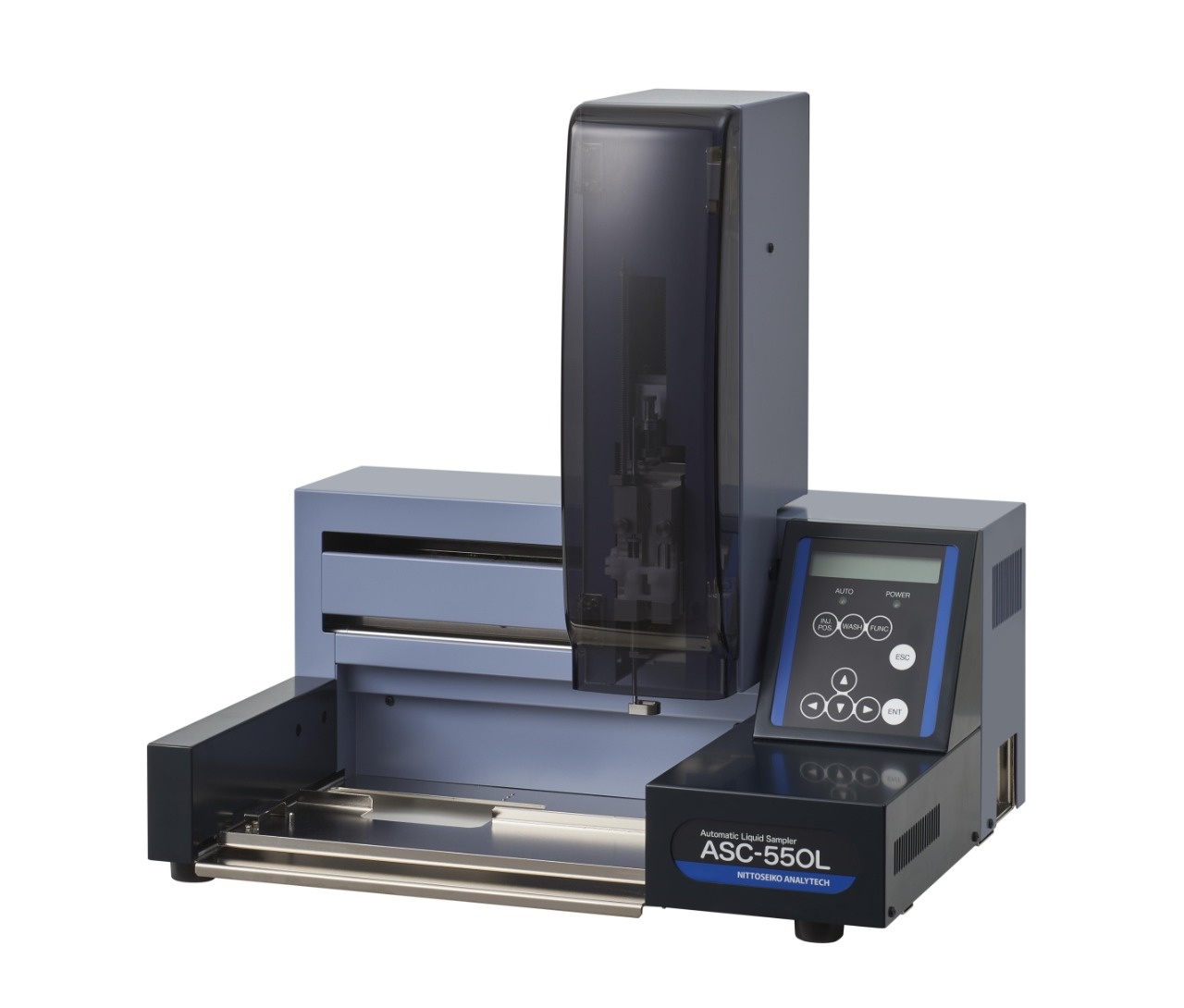

Automatic Sample Changer Model ASC-550L for Liquid samples
ASC550L can automatically measure.
Syringe Pump SP-C for calibration
It can be prepared calibration curve solutions of different concentrations from one calibration curve solution by automatic dilution.

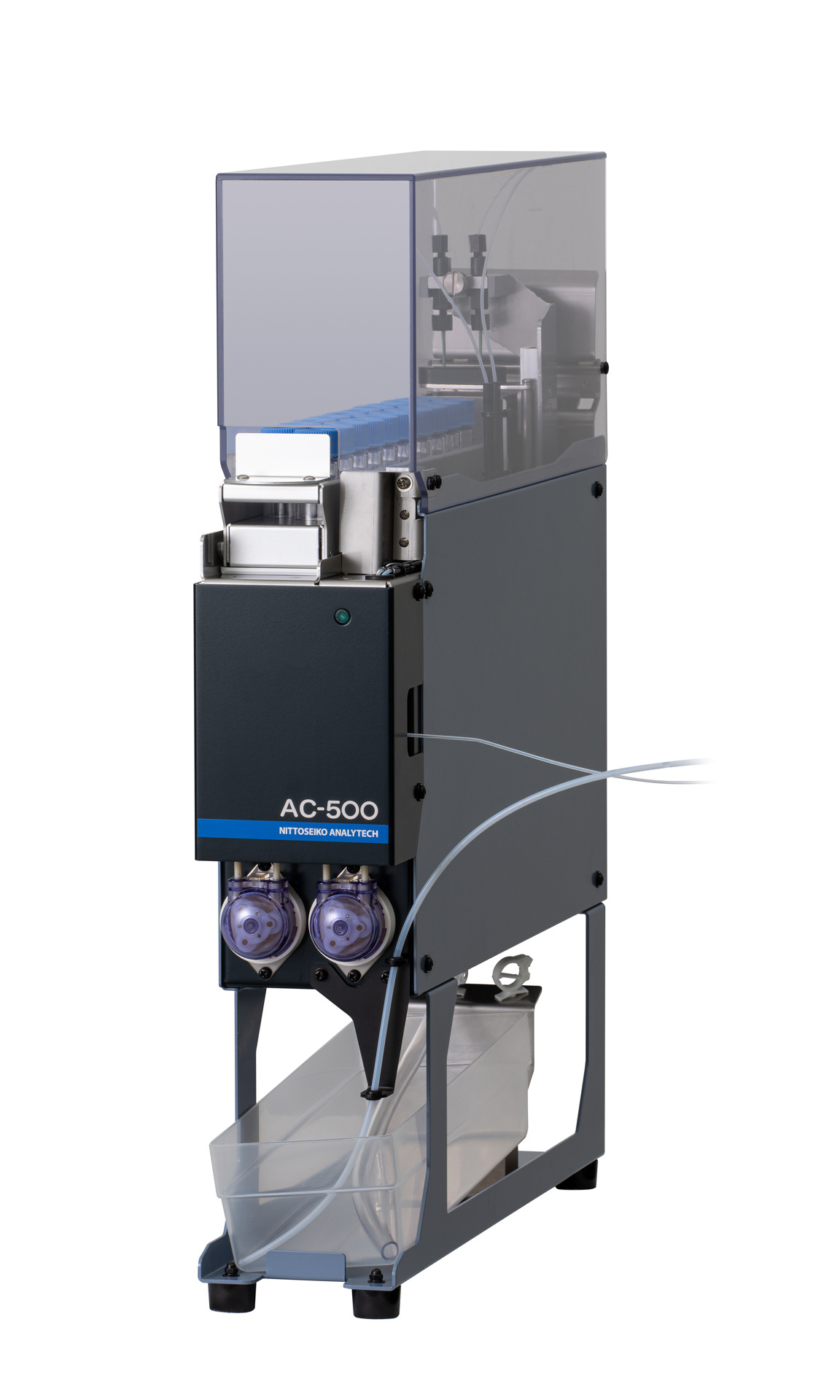

Absorption Solution Collector AC-500
Automation of sample decomposition, gas absorption and preparative isolation for absorption solutions.
